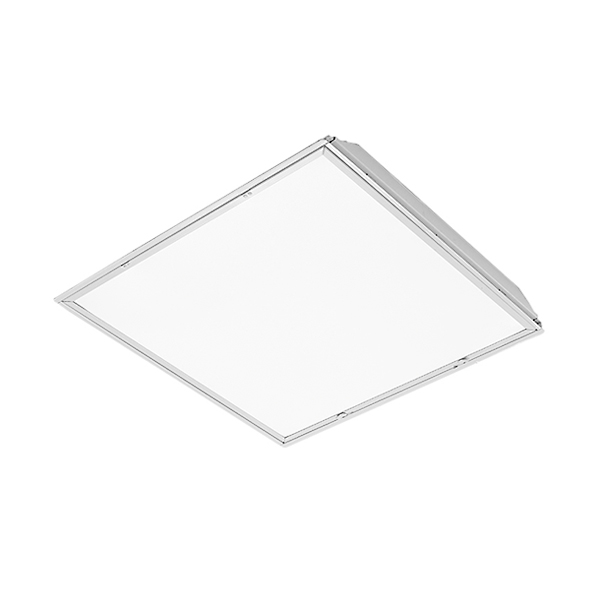

The LED Prismatic Troffer combines the benefits of long life, controllability, and energy savings with an economic design. These LED troffers optimize LED optics and electronics to deliver energy savings and quick payback

Luminaire utilizes long life, high ef cacy LEDs and a highly ef cient, reliable LED driver. 120V-277V input voltage for increased versatility. 0-10V continuous dimming comes standard. Ideal when used in conjunction with controls and sensors. Comes equipped with quick disconnect for compliance with US code.

Installs recessed with T-bar grid. LED module arrays and drivers accessible from fixture during service and operation, no need to access via plenum.

Volumetric effect achieved by delivering a comfortable mix of light to working and surrounding surfaces, creating balanced illumination throughout the environment. Occupants can realize a productive and comfortable atmosphere through enhanced light quality and distribution. Diffuser shape, pattern, and opacity designed in conjunction with precisely-engineered re ector cavity angles to distribute LED light consistently, reducing glare and pixelation.

Highly reflective powder coat finish. Baked white matte paint, applied after fabrication.

UL/cUL listed. All components used have UL approval. UL Class 2. Power supply: SCP, OTP, OVP protection, FCC Part 15 Class B, UL8750 Class 2. DLC listed.

7-year limited warranty and 70,000 hours rated life. See complete warranty terms for details.
Spec Sheet
