EHB LED High Bay Low Bay DLC Premium 7 years warranty
DLC v4.0 Premium

EHB

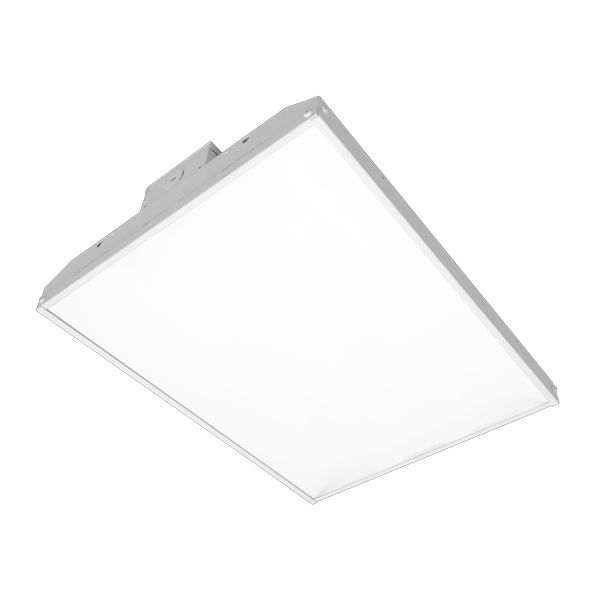

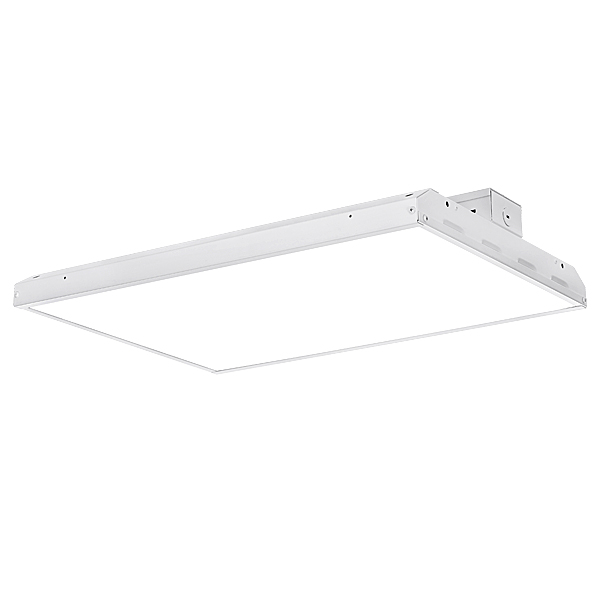

High Performance Linear LED High Bay

The EHB Series Linear LED High Bay delivers high lumen output, long life, dimming capabilities, and no restrike time. This energy-efficient LED luminaire offers one-to-one replacement of existing HID or fluorescent high bays. Precision-formed reflectors deliver adequate light in high mounting applications. Module driver and LED arrays. Economic solution to optimize payback. Capable of being operated with occupancy sensor

APPLICATION

Various commercial industrial applications with high ceilings: warehouse, manufacturing facilities, retail, gymnasiums, grocery.

Luminaire utilizes long life, high efficacy LEDs and a highly efficient, reliable LED driver. 120V-277V input voltage for increased versatility. 0-10V continuous dimming comes standard. Ideal when used in conjunction with controls and sensors. Comes equipped with quick disconnect for compliance with US code.

Rigid, low-profile steel housing. Precision-engineered and manufactured optics to optimize light delivery to the working plane. Convenient mounting options and sufficient knockouts for controls integration and multiple connection options. Housing features radiator slots for heat dissipation and low temperature LED operation.

Comes standard equipped with V-hooks for mounting. Accepts various other mounting options: surface, suspension, air craft cable, chain.

Die formed, 95% reflectivity optical reflectors optimizes performance and light delivery. Comes standard with high transmission frosted lens.

White enamel finish.

UL/cUL listed. All components used have UL approval. UL Class 2. Power supply: SCP, OTP, OVP protection, FCC Part 15 Class B, UL8750 Class 2.

7-year limited warranty and 70,000 hours rated life. See complete warranty terms for details.
EHB Spec Sheet
