ILT-CB_DLR_0
DLC v4.0 Premium

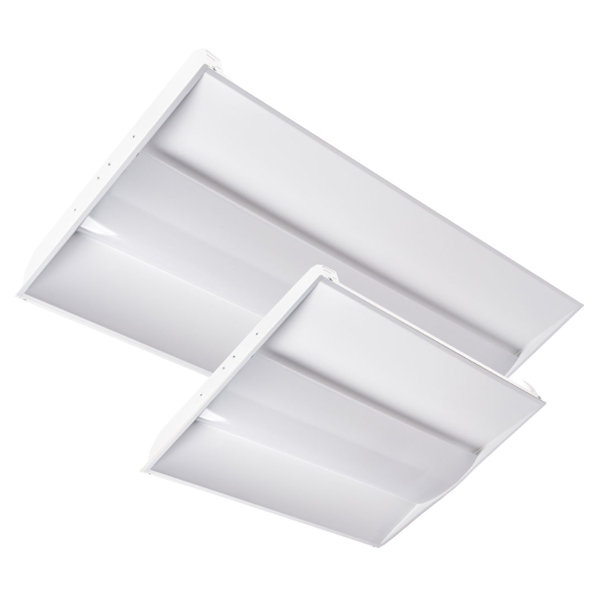

ILT-CB

The ILT-CB Series (Volumetric LED Troffer with Center Diffuser) combines the benefits of long life, controllability, and energy savings with elegant design and superior quality of light. The ILT luminaires optimize LED optics and electronics to deliver energy savings and high performance.

APPLICATION

  • Indoor general/ambient illumination
  • Ideal for offices, retail, and other architectural spaces that demand energy reduction and high quality light

CONSTRUCTION

  • Rugged construction: solid die-formed, cold-rolled steel
  • Interior utilizes highly reflective powder coat finish
  • All surfaces coated and baked post-fabrication with high gloss powder-paint
  • Diffuser lens provides even and consistent light while eliminating pixelation
  • Toolless removal of diffuser allows access to LED array
  • LED module and driver are replaceable
  • Housing and optics maintain damp location rating with all internal components

ELECTRICAL

  • Luminaire utilizes long life, high efficacy LEDs and a highly efficient,
    reliable LED driver
  • 120V-277V input voltage for increased versatility
  • 0-10V continuous dimming comes standard
  • Ideal when used in conjunction with controls and sensors
  • Comes equipped with quick disconnect for compliance with US code

MOUNTING

  • Installs recessed with T-bar grid
  • LED module arrays and drivers
    accessible from fixture during service and operation
  • No need to access via plenum

FINISH

  • Highly reflective powder coat finish
  • Baked white matte paint and applied after fabrication

OPTICS

  • Volumetric effect achieved by delivering a comfortable mix of light
    to working and surrounding surfaces, creating balanced illumination
    throughout the environment
  • Occupants can realize a productive and comfortable atmosphere through enhanced light quality and distribution
  • Diffuser shape, pattern, and opacity designed in conjunction with precisely-engineered reflector cavity angles to distribute LED light consistently, reducing glare and pixelation

CERTIFICATIONS / REGULATORY

  • UL/cUL listed
  • Damp location rated
  • All components used have UL approval
  • UL Class 2
  • Power supply: SCP, OTP, OVP protection, FCC Part 15 Class B, UL8750 Class 2
  • DLC Premium listed

WARRANTY

  • 7-year limited warranty
  • See complete warranty terms for details
